颏部形态对正畸治疗影响的研究

doi:10.7518/hxkq.2023.2022508

摘要/Abstract

摘要：

目的通过对骨性Ⅰ类患者矫治前后的测量数据进行分析，探讨不同颏部软组织形态在矫治前后的变化及其对矫治结果的影响。方法选取55例2012年1月—2020年12月在吉林大学口腔医院正畸科完成正畸治疗的成年女性骨性Ⅰ类患者，根据头颅侧位X线片中的软组织颏形态将患者分为异常颏组（颏部形态较平坦后缩，n=27）和正常颏组（颏部形态较圆润突出，n=28），并选取相关软硬组织指标进行测量，研究不同颏部形态矫治前后组内的变化以及组间的差异。结果矫治前异常颏组的颏唇沟角、下颌颏角、下颏顶角、PP-MP、LL-E、UL-E、Po-Pos、B-B’厚度大于正常颏组（P<0.05），m∶BMe和n∶B’Mes小于正常颏组（P<0.05）。矫治后异常颏组的下颌颏角、下颏顶角、U1-SN、L1-MP、LL-E距、UL-E距、SNA、SNB和B-B’厚度减小（P<0.05），鼻唇角、m∶BMe、n∶B’Mes和Po-Pos增大（P<0.05）。矫治后正常颏组的U1-SN、L1-MP、LL-E距、UL-E距和B-B’厚度减小，鼻唇角增大（P<0.05）。m∶BMe和n∶B’Mes正相关。结论颏部形态影响矫治计划的制定，与正常颏组相比，异常颏组需要设计更大的前牙回收量；颏部软组织形态与骨组织形态相关，但是矫治后软组织颏的变化不能直接按照骨组织变化进行预测；软组织颏形态影响软组织侧貌的美学评估和矫治前后软组织的变化，对于矫治后软组织颏部变化的预测必须考虑到软组织颏本身的形态。

关键词: 颏部形态, 软组织侧貌, 安氏Ⅰ类

Abstract:

Objective To investigate the effect of different soft-tissue morphologies on the treatment of skeletal class Ⅰ malocclusion patients by analyzing measurement data before and after treatment. Methods Pre- and post-treatment lateral cephalograms of 55 adult female Angle class Ⅰ patients were collected in the Department of Orthodontics, Hospital of Stomatology, Jilin University from January 2012 to December 2020. Chin soft-tissue morphologies in the lateral cranial radiographs were used to divide the patients into an abnormal chin morphology group (flat and retracted chins, n=27) and a normal chin morphology group (rounded and prominent chins, n=28). Relevant soft- and hard-tissue indexes were selected to study in-group varieties and intergroup differences in the varying chin morphologies before and after treatment. Results The chin-lip angle, mandibular chin angle, mandibular chin vertex angle, PP-MP, LL-E, UL-E, Po-Pos, and B-B’ thickness in the abnormal chin morphology group were significantly higher than those in the normal chin morphology group (P<0.05). Furthermore, m∶BMe and n∶B’Mes in the abnormal chin morphology group were signi-ficantly lower than those in the normal chin morphology group (P<0.05). After treatment, the mandibular chin angle, mandibular chin vertex angle, U1-SN, L1-MP, LL-E, UL-E, SNA, SNB, and B-B’ thickness of the abnormal chin morphology group significantly decreased (P<0.05), whereas the nasolabial angle, m∶BMe, n∶B’ Mes, and Po-Pos significantly increased (P<0.05). In the normal chin morphology group, the U1-SN, L1-MP, LL-E, UL-E, and B-B’ thicknesses decreased significantly (P<0.05), whereas the nasolabial angle significantly increased (P<0.05). Among them, m∶BMe and n∶B’ Mes were positively correlated. Conclusion Chin morphology affects the formulation of treatment plans. Compared with the normal chin morphology group, the abnormal chin morphology group required a larger retraction of incisors. Although the chin of soft-tissue morphology is related to the morphology of bones, the changes in soft tissue chin after treatment cannot be directly predicted according to the bone changes. Soft-tissue chin morphology affects the aesthetic assessment of the soft-tissue lateral profile and the change in soft tissue before and after treatment. The method of predicting the change in soft-tissue chin after treatment should consider the morphology of the soft-tissue chin.

Key words: chin morphology, soft tissue profile, Angle classⅠ

中图分类号:

R 783.5

付彧, 李紫薇, 赵梦晗, 史瑞新. 颏部形态对正畸治疗影响的研究[J]. 华西口腔医学杂志, 2023, 41(4): 443-449.

Fu Yu, Li Ziwei, Zhao Menghan, Shi Ruixin.. Study on the effect of chin morphology on orthodontic treatment[J]. West China Journal of Stomatology, 2023, 41(4): 443-449.

图/表 5

图 1

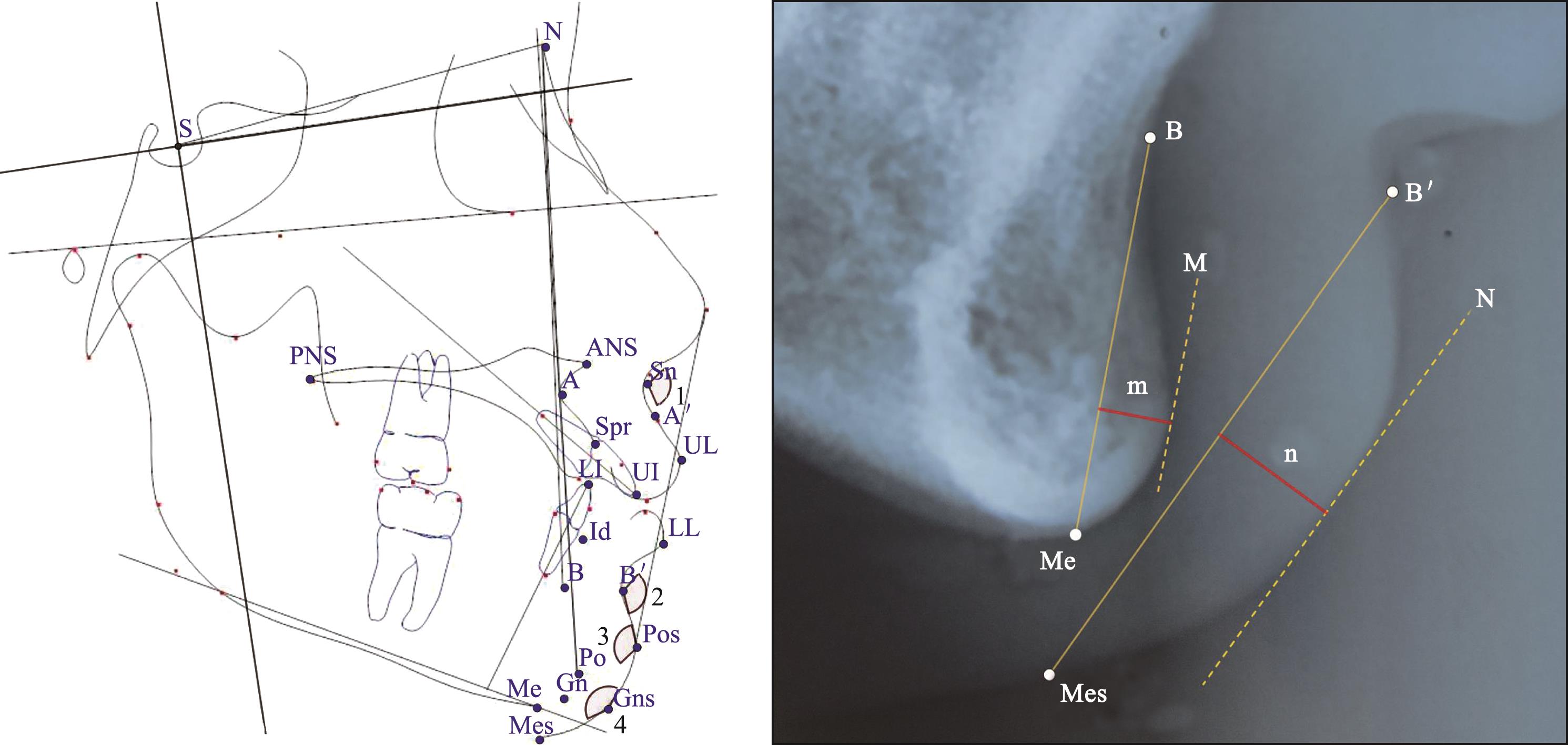

图 2

表 1

异常颏组和正常颏组矫治前后角度和颏部测量指标比较

测量指标	异常颏组		正常颏组		P值
测量指标	①矫治前	②矫治后	③矫治前	④矫治后	①和②	③和④	①和③	②和④
鼻唇角/°	95.24±8.86	101.74±8.74	93.70±8.90	102.63±8.63	0.000*	0.000*	0.525	0.707
颏唇沟角/°	141.28±14.71	140.14±12.41	130.84±12.01	133.23±11.68	0.604	0.098	0.006*	0.038*
下颌颏角/°	142.75±8.60	133.24±8.59	127.19±6.17	125.29±6.91	0.000*	0.071	0.000*	0.000*
下颏顶角/°	150.55±7.22	143.27±6.63	142.07±5.35	141.81±5.83	0.000*	0.792	0.000*	0.391
m∶BMe	0.19±0.04	0.20±0.03	0.21±0.03	0.21±0.03	0.041*	0.161	0.023*	0.043*
PP-MP/°	28.66±5.20	29.23±4.84	24.61±5.11	24.86±5.84	0.064	0.438	0.005*	0.004*
MP-SN/°	33.60±5.41	32.79±5.94	31.21±5.38	31.13±5.60	0.334	0.760	0.107	0.306
L1-MP/°	103.40±6.82	94.94±6.80	102.27±7.54	95.27±7.64	0.000*	0.000*	0.563	0.866
UL-E距/mm	2.00±1.90	-0.02±1.60	0.64±1.85	-1.22±1.69	0.000*	0.000*	0.010*	0.009*
SNA/°	82.54±4.00	81.69±3.98	82.93±4.16	82.37±3.68	0.003*	0.065	0.727	0.515
SNB/°	78.68±3.99	78.17±3.84	79.55±3.71	79.16±3.59	0.015*	0.075	0.406	0.325
Po-Pos/mm	12.72±1.75	13.54±2.40	12.29±1.80	11.92±2.18	0.044*	0.089	0.033*	0.143
n∶B’Mes	0.17（0.15，0.20）	0.21（0.20，0.25）	0.23（0.22，0.27）	0.25（0.23，0.27）	0.000*	0.050	0.000*	0.007*
U1-SN/°	115.95（108.80，119.80）	101.95（93.85，107.45）	116.58（109.68，122.53）	102.83（96.11，106.03）	0.000*	0.000*	0.405	0.649
LL-E距/mm	5.35（4.70，6.30）	1.75（0.40，2.25）	2.98（1.60，4.61）	0.15（-1.68，1.40）	0.000*	0.000*	0.000*	0.001*
ANB/°	4.05（2.45，5.00）	3.60（2.15，5.35）	3.93（2.04，4.48）	3.73（1.85，4.19）	0.153	0.493	0.266	0.424
B-B’厚度/mm	13.31（12.76，16.46）	12.05（10.92，13.62）	12.10（11.07，12.69）	10.90（9.93，12.38）	0.000*	0.016*	0.000*	0.023*
Gn-Gns厚度/mm	8.61（7.50，9.36）	8.38（7.46，9.37）	8.92（8.17，9.59）	9.12（8.30，9.70）	0.904	0.665	0.289	0.074
Me-Mes厚度/mm	6.48（5.29，7.44）	6.59（5.48，7.61）	6.89（6.40，8.09）	7.63（6.39，8.18）	0.564	0.387	0.064	0.030*

表 1

表 2

表 3

参考文献 16

1	Zhou X, Zheng Y, Zhang Z, et al. Customized maxillary incisor position relative to dentoskeletal and soft tissue patterns in Chinese women: a retrospective study[J]. Korean J Orthod, 2022, 52(2): 150-160.
2	卢芸, 余姗姗, 兰庭超, 等. 颏部软组织形态与牙颌面结构相关性研究[J]. 口腔医学研究, 2021, 37(10): 910-913.
	Lu Y, Yu SS, Lan TC, et al. Study of correlation between soft tissue chin morphology and dento-maxillofacial structure[J]. J Oral Sci Res, 2021, 37(10): 910-913.
3	Maetevorakul S, Viteporn S. Factors influencing soft tissue profile changes following orthodontic treatment in patients with Class Ⅱ Division 1 malocclusion[J]. Prog Orthod, 2016, 17: 13.
4	Sinha N, Reddy KM, Gupta N, et al. A cephalometric analysis of Class Ⅱ dentate subjects to establish a formula to determine the occlusal plane in ClassⅡedentate subjects: a neo adjunct[J]. J Indian Prosthodont Soc, 2017, 17(3): 226-232.
5	Derwich M, Minch L, Mitus-Kenig M, et al. Persona-lized orthodontics: from the sagittal position of lower incisors to the facial profile esthetics[J]. J Pers Med, 2021, 11(8): 692.
6	Naini FB, Garagiola U, Wertheim D. Analysing chin pro-minence in relation to the lower lip: the lower lip-chin prominence angle[J]. J Craniomaxillofac Surg, 2019, 47(8): 1310-1316.
7	周志捷, 王天鸽, 林怡君, 等. 骨性Ⅱ类错𬌗正畸正颌联合治疗前后软硬组织侧貌变化的线性相关分析[J]. 中华口腔正畸学杂志, 2021, 28(3): 141-146.
	Zhou ZJ, Wang TG, Lin YJ, et al. Linear correlation analyses between soft and hard tissue profile changes of Skeletal ClassⅡmalocclusion patients[J]. Chin J Orthod, 2021, 28(3): 141-146.
8	Utsuno H, Kageyama T, Uchida K, et al. Pilot study of facial soft tissue thickness differences among three ske-letal classes in Japanese females[J]. Forensic Sci Int, 2010, 195(1/3): 165.e1-165.e5.
9	Hayashida H, Ioi H, Nakata S, et al. Effects of retraction of anterior teeth and initial soft tissue variables on lip changes in Japanese adults[J]. Eur J Orthod, 2010, 33(4): 419-426.
10	迪丽菲热·吐尔洪, 祖丽胡马尔·努尔艾合买提, 贾俊, 等. 不同厚度颏部安氏Ⅱ¹类患者颏部形态的变化研究[J].中国美容医学, 2019, 28(9): 81-85.
	Dilifeire·TEH, Zulihumaer·NEAHMT, Ja J, et al. A stu-dy on the morphological changes of the chin in Angle Ⅱ Type 1 cases with different thickness of the chin[J]. Chin J Aesthet Med, 2019, 28(9): 81-85.
11	Yu YH, Kim YJ, Lee DY, et al. The predictability of dentoskeletal factors for soft-tissue chin strain during lip closure[J]. Korean J Orthod, 2013, 43(6): 279-287.
12	Lu W, Zhang X, Mei L, et al. Orthodontic incisor retraction caused changes in the soft tissue chin area: a retrospective study[J]. BMC Oral Health, 2020, 20(1): 108.
13	Evangelista K, Silva MAGS, Normando D, et al. Factors associated with the morphology of the mandibular symphysis and soft tissue chin[J]. Dental Press J Orthod, 2021, 26(4): e2119347.
14	Patil HS, Golwalkar S, Chougule K, et al. Comparative evaluation of soft tissue chin thickness in adult patients with skeletal class Ⅱ malocclusion with various vertical growth patterns: a cephalometric study[J]. Folia Med (Plovdiv), 2021, 63(1): 74-80.
15	Gómez Y, García-Sanz V, Zamora N, et al. Associations between mandibular symphysis form and craniofacial structures[J]. Oral Radiol, 2018, 34(2): 161-171.
16	Perović TM, Blažej M, Jovanović I. The influence of mandibular divergence on facial soft tissue thickness in classⅠpatients: a cephalometric study[J]. Folia Morphol (Warsz), 2022, 81(2): 472-480.

测量指标	异常颏组	正常颏组	P值
鼻唇角/°	6.51±5.09	8.92±7.56	0.172
颏唇沟角/°	-1.14±11.30	2.39±7.38	0.174
下颌颏角/°	-9.51±7.82	-1.89±5.33	0.000*
下颏顶角/°	-7.28±6.69	-0.26±5.21	0.000*
m∶BMe	0.01±0.03	0.01±0.03	0.162
PP-MP/°	0.57±1.53	0.24±1.63	0.445
U1-SN/°	-14.09±5.14	-14.33±5.87	0.876
L1-MP/°	-8.46±5.67	-7.01±5.83	0.351
UL-E距/mm	-2.02±1.04	-1.86±1.17	0.594
SNA/°	-0.85±1.37	-0.56±1.54	0.462
SNB/°	-0.51±1.01	-0.38±1.10	0.662
ANB/°	-0.34±1.07	-0.17±1.11	0.575
B-B’厚度/mm	-2.02±1.87	-0.66±1.32	0.003*
Gn-Gns厚度/mm	0.07±1.39	0.11±1.06	0.905
Me-Mes厚度/mm	1.44±1.47	0.52±1.49	0.024*
MP-SN/°	0.35（-0.20，1.40）	-0.23（-1.44，1.18）	0.083
LL-E距/mm	-3.90（-4.80，-3.05）	-3.23（-3.90，-2.28）	0.024*
Po-Pos/mm	0.85（-0.65，2.75）	-0.50（-1.00，0.49）	0.006*
n∶B’Mes	0.047（0.029，0.070）	0.010（-0.008，0.036）	0.000*

变量1	变量2	r值	P值
n∶B’Mes	m∶BMe	0.707	0.000*
n∶B’Mes变化量	m∶BMe变化量	0.068	0.621
